The start of my fish room, woot!

Discussion in 'Freshwater Equipment, Products, & DIY' started by shewolfgeo, Aug 29, 2011.

  1. shewolfgeo

    shewolfgeo
    Expand Collapse
    AC Members

    Real Name:
    Shandy
    Joined:
    Oct 14, 2008
    Messages:
    741
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    USPS carrier
    Location:
    Eastern Kentucky
    Last Seen:
    Apr 16, 2014
    Real Name:
    Shandy

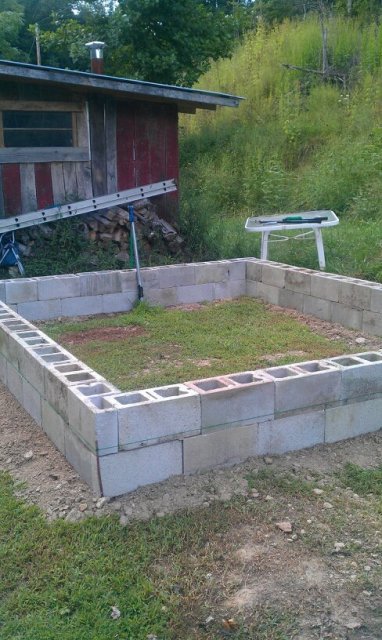

    It's finally happening. We started Sunday with it. Today my hubby done the second roll of blocks. I'm going in a little bit to get cement to fill the blocks up and maybe we'll get it poured tomorrow. We are starting with a 10x12 building, and going to try to have 3 rolls of tanks and have 3 shelves too. I plan to have them plumbed together. If I do well enough we may build on, or look for me a place to rent and start up a pet shop. Don't know yet we'll have to see.

    Does anyone have any links to a DIY with instructions on a plumbing system without having any drill holes.


    288744_213459102040982_100001306821116_535061_8337500_o.jpg 340497_213815035338722_100001306821116_536392_1549949_o.jpg

    288744_213459102040982_100001306821116_535061_8337500_o.jpg 340497_213815035338722_100001306821116_536392_1549949_o.jpg

  2. dudley

    dudley
    Expand Collapse
    Eheim User

    Real Name:
    Dee
    Joined:
    Feb 9, 2005
    Messages:
    607
    Likes Received:
    4
    Trophy Points:
    18
    Location:
    Medina, Ohio
    Last Seen:
    Yesterday at 7:53 PM
    Real Name:
    Dee
    I like the idea of the outbuilding for housing fish but I don't know if you are going to be happy with the foundation stability during the winter months. I am not familiar with the weather in eastern Kentucky but in Ohio, the foundation needs to be below the frost line so it isn't heaved out during the cold/warm cycles.

    Also, the cinder blocks aren't stacked properly to provide a secure wall.

    Sorry to be such a negative Nelly but I hate to see you go through all the work only to have to redo it later or have damage to your aquariums.

    Collapse Signature Expand Signature
  3. dbosman

    dbosman
    Expand Collapse
    AC Members

    Real Name:
    Joined:
    Dec 5, 2010
    Messages:
    1,481
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    East Lansing, MI USA
    Last Seen:
    Jan 27, 2013
    Ditto on checking the building code to make sure the building doesn't heave apart.

    For a central filtration system or a central drain system, you want to drill the tanks. Plumbing over flows is asking for either whole tanks over flowing or whole tanks draining to the bottom of the siphon tube.
    Drilling non-tempered glass tanks isn't hard. Pick up broken tanks to practice on first.
    Drilling tempered glass results in thousands of pieces of glass when it shatters.

  4. shewolfgeo

    shewolfgeo
    Expand Collapse
    AC Members

    Real Name:
    Shandy
    Joined:
    Oct 14, 2008
    Messages:
    741
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    USPS carrier
    Location:
    Eastern Kentucky
    Last Seen:
    Apr 16, 2014
    Real Name:
    Shandy
    What is wrong with the way they are stacked?

    I see homes here with their foundations above ground.. What would be the difference with this?
    We talked about bring in dirt to fill in around the building. Do you think we should go a head with that plan?

    I don't want to drill the tanks, so there isn't a way to get them on a central system?

  5. mellowvision

    mellowvision
    Expand Collapse
    Seafood Lover

    Real Name:
    Bill Brissette
    Joined:
    May 17, 2007
    Messages:
    5,099
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Brooklyn NY
    Last Seen:
    Dec 9, 2014
    Real Name:
    Bill Brissette
    you can still put them on a central system, drilling just makes them easier.

    I think the reference to the way they are stacked is pointing out that the blocks are not half lapping each other, as they should be. The bigger problem is that they sit directly on uncompacted dirt, so it's possible they will sink in, move, or be heaved by frost. A poured foundation right on the ground is a different thing, and is usually several feet into the ground anyway, if not a full floor deep. You should really look into local codes and practices before wasting all your time and materials.

    Collapse Signature Expand Signature
  6. Rbishop

    Rbishop
    Expand Collapse
    ...and over the edge.
    Staff Member

    Real Name:
    Mr. Normal
    Joined:
    Dec 30, 2005
    Messages:
    38,471
    Likes Received:
    124
    Trophy Points:
    117
    Occupation:
    Production Manager
    Last Seen:
    Yesterday at 4:15 PM
    Real Name:
    Mr. Normal
    :thm:

    Collapse Signature Expand Signature
  7. shewolfgeo

    shewolfgeo
    Expand Collapse
    AC Members

    Real Name:
    Shandy
    Joined:
    Oct 14, 2008
    Messages:
    741
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    USPS carrier
    Location:
    Eastern Kentucky
    Last Seen:
    Apr 16, 2014
    Real Name:
    Shandy
    Thank you for pointing what they meant by the stacking. I know some of the blocks at the back are as they should, but the ones closer up aren't. I think that is how he had to cut some to fit. Anyways we are going to place steel rods into the blocks and ground before pouring cement. That'll give extra support.

    The ground isn't uncompacted, that dirt around the blocks are from digging into the ground.

    I'll point some of the things out to my hubby tomorrow when we work on it. He's took carpentry in school and should know what he's doing, and we have looked into the local codes here, and seems everything looks fine as far as I can understand them.

  8. Mgamer20o0

    Mgamer20o0
    Expand Collapse
    BobsTropicalPlants.com
    Staff Member

    Real Name:
    Joined:
    Jun 4, 2003
    Messages:
    31,221
    Likes Received:
    14
    Trophy Points:
    89
    Last Seen:
    Monday at 3:51 PM
    look up neos diy over flows out of pvc. its a easy way to put it on a central system with out drilling.

    Collapse Signature Expand Signature
  9. shewolfgeo

    shewolfgeo
    Expand Collapse
    AC Members

    Real Name:
    Shandy
    Joined:
    Oct 14, 2008
    Messages:
    741
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    USPS carrier
    Location:
    Eastern Kentucky
    Last Seen:
    Apr 16, 2014
    Real Name:
    Shandy
    thank you Mgamer I'll look that up.

  10. CWO4GUNNER

    CWO4GUNNER
    Expand Collapse
    USN/USCG 1974-2004 Weps

    Real Name:
    Joined:
    Apr 18, 2009
    Messages:
    4,270
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Retired Chief Warrant Officer Gunner, CWO4
    Location:
    Bullhead AZ
    Last Seen:
    Nov 14, 2014
    Looks like a your building a serious fish-room using good materials so you might as well have a good foundation. Along with the poured slab make sure you use plenty of sand beneath the slab as a bed, this way the building will last and if you ever get tired of fish room keeping you can use the building for other practical uses, maybe as a rental.
