Girlfriend melted center brace of my new 120 gallon tank

iljadej

AC Members
Oct 17, 2011
42
0
0
Alright, so first thing I woke up to this morning was my girlfriend telling me that she accidently melted my center brace of my new 120g (60x18) tank by moving one of my heat lamps directly on top of the center brace. I just got the tank and in the process of setting up. What is the best way to go about this situation, do I contact perfecto to order a whole new trim or is there another way to fix it? And if I do replace the trim, would the process of taking off the trim damage the aquarium in any way? Any help is appreciated.

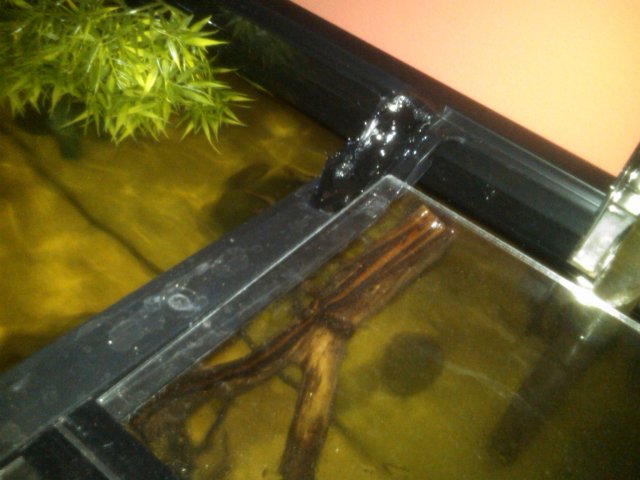

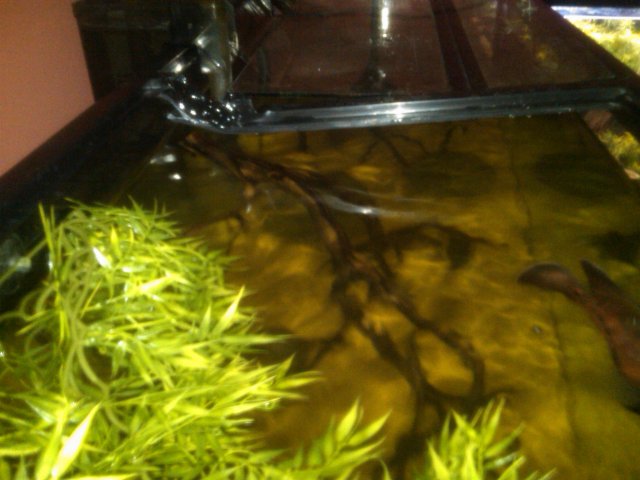

IMG-20120302-00018.jpg IMG-20120302-00016.jpg

Oh wow, that really sucks :( I hope she's offered to pay for the fix! I know I sure would, I would feel horrible about doing that to someone's brand new tank. I guess by the time she smelled something burning, it was too late.

Other than replacing the trim, the only other way would be to eurobrace it (you can Google it, there's a lot on the web about DIYing this kind of brace).

I'd go ahead and order a new trim, but be prepared for it to be exorbitantly expensive! It won't damage the aquarium to replace the trim...just empty it most of the way, take a slim box cutter (don't use those big utility knives) and cut away the silicone under the trim. Eventually you should be able to pull it off, but it won't be easy. Take your time and be gentle. There will be quite a lot of silicone, those trims are really fastened on tight these days...I guess because people tend to pick up tanks from the trim, even though they're not supposed to.

Replacing the trim is a very easy process, there are many "how-to" guides on the internet. Basically you just slide a razor blade under both sides, pull the trim off, clean the glass, apply aquarium safe silicone, and replace with new trim. I've done it with tanks that had fish in them. Just drop the water level and you should be fine.

Be careful letting girlfriends near your tank.

If you have a knife with a flexible blade, like a filet knife, I've found it to work better than razor blades. You can grasp the knife handle a little easier I think and depending on the size of the trim, a razor blade may not make it in as far as you need it to break the silicone bond. Just make sure you keep the other hand away from the path of the blade. That goes for using razor blades too.

I've also found it's easier if you can cut through the brace at one point, preferably near a corner. If you have a dremel tool with a cutoff blade, it sails right through the plastic. An angle grinder would work too, but you have to be extra careful with the bigger blade to not nick the glass. Cutting through the plastic makes it easier to get the blade between the plastic and glass to break the silicone bond.

When you replace the trim, remember to re-silicone it. As platytudes suggested, it will make the tank "somewhat" capable of being lifted by the trim, but more important it will prevent rim leaks.

If the tank is full, eurobracing may not be the best alternative since the silicone may not cure properly with the humid conditions. If you can empty it, I'm a big fan of eurobracing, and if you have a good glass shop nearby, that fix can actually be just as easy, slightly cheaper, and a lot better looking than replacing the trim. You do have to be quite meticulous in getting all the old silicone off, even on the edges.

Whichever route you choose, be aware that the edges of the glass under the trim aren't seamed. They are usually unfinished and sharp.

Last edited by a moderator:
One thought:
That trim top is not only a center brace, it is a means of holding and supporting those corners of the vertical seams.
When this is removed that support is lost and and pressure from a partially full tank can stress those corner seams on the silicone
and mabybe cause leaks later on.
If I were going to be doing the repair on a full or partially full tank I would put some sort of band or something around the tank top.
Also be gentle pulling and prying the plastic off they can be a pain sometimes.

There's only one way to remove a top frame that qualifies as productive labor. Mask off the glass along the bottom edge of the frame and take a reciprocating saw to it. I've done several this way and as long as you exercise a bit of care you will not damage the tank.

I have not ordered from here but I came across this website on here a while ago and kept it for that dreaded day I might need it... maybe you can get a new brace here.
http://www.cciaquarium.com/index.html
Good luck!....

LOL AquatiCreations, be careful when your girlfriends get close to your tanks! You should put some yellow tape around the tank, like this is the safe distance, like they do in machine shops......:)
