Nitrate Bio Reactor Build

  • Get the NEW AquariaCentral iOS app --> http://itunes.apple.com/app/id1227181058 // Android version will be out soon!

kcress

AC Members
Apr 9, 2005
821
0
0
As we all should know there are bacteria that convert animal waste to poisonous ammonia. There's another bacteria that then converts the ammonia to poisonous nitrite. And yet another wonderful bacteria that converts nitrite to non-poisonous nitrate. These are the basis of our systems. Without these guys we would not be able to maintain our tanks.

We are often shackled to lots of expensive water changes to deal with this resulting nitrate. It's not poisonous but it does promote major algae growth. Well there is yet another bacteria we can press into service for converting the nitrate into nitrogen gas. However unlike all the aforementioned aerobic bacteria this bacteria is anaerobic. It hates air. Air will kill it or push it into dormancy. I suspect that if it is drowning in nitrogen (which is 78% of our air) it may not be able to make more nitrogen. Rather like the yeasts that make beer essentially killing themselves as they increase the alcohol content of their surroundings.

To provide the correct environment for this bacteria a relatively recent development has been the use of Deep Sand Beds (DSBs). The theory being that under 7 or 8 inches of sand there is so little oxygen available, due to poor water circulation, that this de-nitrating algae can do its magic. I've never tried this.

As some of you know I have high nitrates. Recent tests show them to be well in excess of 500ppm I cannot dilute further with my equipment than 10 to 1 and with my tank water diluted at 10 to 1 my reading is over 160ppm. This means my ppm may actually be around 1600ppm.

This is my diluted 1/10 test.


I also have 200 lbs of crushed coral... I prefer the look and the animal habitat crushed coral provides, but it obviously also creates a lot of nitrates.

What to do..?

Turns out you can actually use this nitrate gobbling bacteria in a different manner than with just a DSB. You can build a BioReactor, a device that is designed to help this bacteria flourish and do its magic. At least this is the theory.

Let's give it a try.

In a nut shell you make a tube charged with sulfur. The bacteria uses the sulfur to do its thing. You circulate water around and around in it over and over. Eventually the environment becomes anaerobic to the point that the bacteria of choice becomes content and flourishes. They promptly gobble up the available nitrate and generate nitrogen. Once this occurs the bacteria will starve and die. So to prevent this and to actually get the desired job done you let a very small amount of your tank water into and obviously back out of your bioreactor. More on this as we go along.

Here's my NitrateBioReactor build:

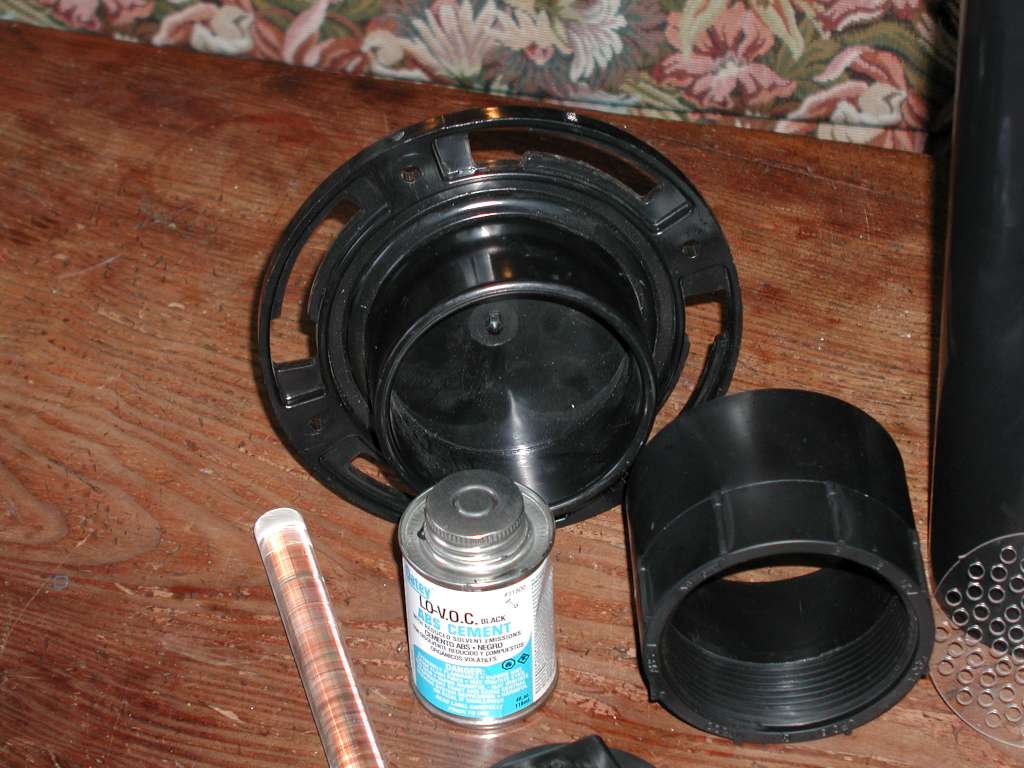

Here's the stuff I started with. Some things changed as the build proceeded. I'm going to use LSM sulfur. There is actually another brand that is supposedly pre-inoculated with the correct bacteria, but it costs an absurd amount of money in my opinion. It's larger pellets which are more desired but we'll see.

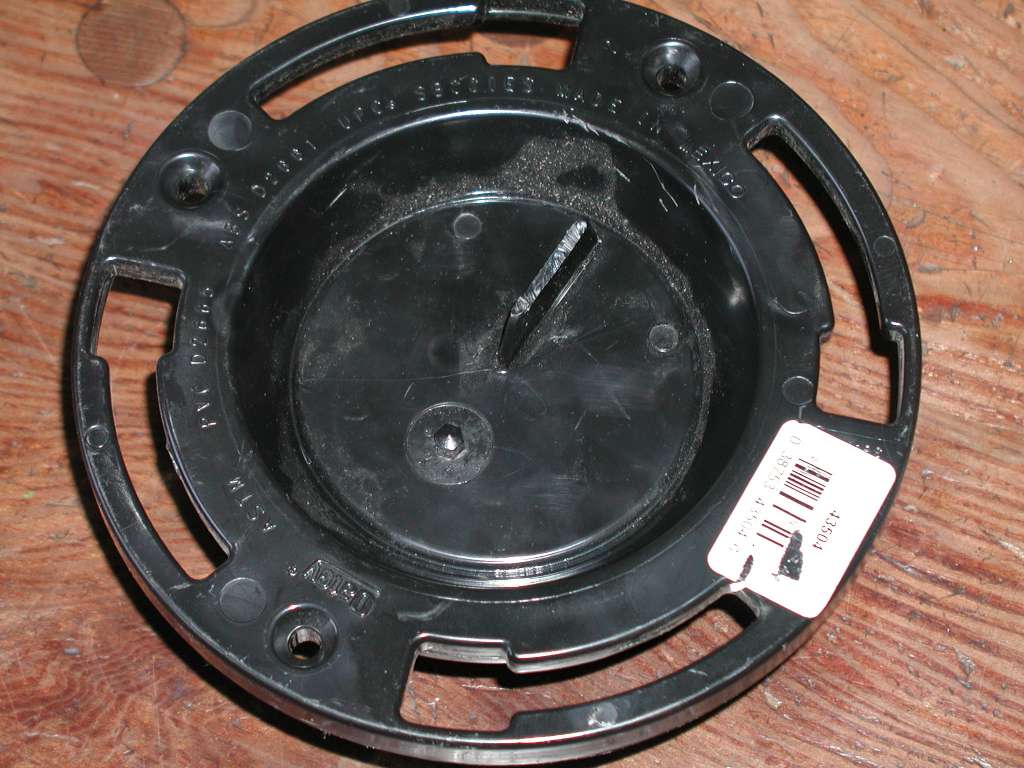

I found this cool flange that is called a test flange. It comes pre-sealed so pressure testing can be done without plugs being needed.


The flange has this tab on it that the plumber is supposed to grab with pliers and rip out after testing. The tab actually sticks above the plane which would cause a nasty rocking situation. I used a razor knife to carve the tab below grade.


Pipe glued to flange.


Here's the diffusion plate to keep the media from plugging the recirc port. I Punched it out with my CNC router. First plexy I ever routed. Went off without a hitch. I was stoked! You can of course just use a drill and a saw to make one too! I glued a single rod on it to stand it off the column's bottom. This turned out to be a major sadistic nightmare. I was never able to stick it all the way down the pipe even after about 30 attempts. I finally snapped off the peg. I took a piece of schedule 120 PVC 1-1/2". I drilled it full of a million holes. I dropped it down the barrel. When I had it fairly centered I dropped the plate down the hole. This was followed by a ScotchBrite disk. I followed that with a layer of Matrix. Then a homogenized 50/50 mix of matrix and sulfur up to the top. Followed by another ScotchBrite disk.


Here's the upper port inside and outside views.



Vent inside/outside. The vent allows you to bleed off the nitrogen that can become trapped at the top of the column. Perhaps every day at one feeding. I am hoping that the nitrogen just leaves out my effluent drip line.



Finished product. My outlet is at the bottom. The inlet is the top. No external pump needed as long as the unit is below the tank.


Now the unit is hooked up, charged with tank water and the outlet is set to drip one drop per second. What will be seen is in about three days the bacteria will start to establish itself. When it does this the effluent coming out will start increasing from non-detectable amounts of nitrite to 1ppm even up to 4ppm of nitrite. Since it is just a drop a second though your tanks normal nitrite to nitrate bacteria should convert this to nitrate with no detectable rise in your tank's nitrite levels. If you actually end up with nitrite over 3 or 4 ppm coming out you can test your tank's water just to be sure. There are other tricks like running this whole thing in a pail to avoid nitrite into your tank but this should NOT be necessary and adds complexity.

After a day or so the nitrite effluent should drop to undetectable levels and then the magic happens as the nitrate level of the effluent will next drop dramatically. If lucky it drops to zero. This means nitrate in - zero nitrates out! Eventually your tank nitrates will diminish to a very low level depending on your nitrate sources.

As the nitrate level in the outlet drops you need to increase the flow thru the Bioreactor. If yo don't you will start to starve the thriving bacteria and it will die. When this is occurring yo will start to smell hydrogen sulfide. (rotten eggs). Each day you can increase your drip rate by a drip/minute up to about a good dribble.

As your tank's nitrate heads to zero you will also start to starve the bacteria. You then have two choices. One is to take the unit off line. Flush it with RO water and leave it for another time. Or remove media. Idealy you get the media level correct for your tanks actual nitrate production llevel to keep things balanced and steady.

A successful NitrateBioReactor will reduce your need for water changes dramatically. Yo should still do them but you will be able to do them less often or of smaller size.

Ok now for my results.


After 48hrs, no sign of anything happening at 1 drip/min.

After 72hrs a measurable nitrite level has shown up. 1ppm.
No obvious nitrate level drop. But then it needs to drop possibly 1400ppm before my test picks it up as anything other than overrange.

After 96hrs WOW!!! My nitrate effluent is now at 60ppm!! I am amazed. The nitrite is still at 1ppm. No concern to me. I have just turned up the flow to 2 drops per second.

Stay tuned.


noskimmer

AC Members
Mar 5, 2007
316
0
16
48
Sydney
Real Name
Nick Papahatzis
That is most impressive! no VERY IMPRESSIVE! Well done. Good well founded simple principles used based on good information.

Well done again!


kcress

AC Members
Apr 9, 2005
821
0
0
To be honest, I too am most impressed. To think I've made things deliberately odd to make some strange Cooties happy and they are in turn making me happy. We kind of take the standard bacteria for granted but I look at my running reactor and realize there is an obscure form of life in there that is making it all happen. Life is amazing.


kcress

AC Members
Apr 9, 2005
821
0
0
Nitrites out are now 0ppm
and nitrate is ~7ppm

I'll be turning up the flow again.


noskimmer

AC Members
Mar 5, 2007
316
0
16
48
Sydney
Real Name
Nick Papahatzis
So I wonder what the maximum flow to nitrate reduction would be? Although, at the rates of decrease that you are experiencing it doesn't seem to really be an issue. As you would know I still have zero nitrates with no water change. I do understand peoples rational in saying that water changes are essential for essential element replenishment, but are we not introducing this in the form of food, as we do with our own diets and body needs? And, well.. you know how I feel about skimmers. I think you have done a fantastic job. Keep us posted.


kcress

AC Members
Apr 9, 2005
821
0
0
Hi noskimmer!

I am still in awe of your tank.
I'd like to review it again. Where is a thread on it?

Here's an update.

When I first fired this thing up I didn't feel good about the intake being just a piece of 1/4" tubing dipping into my tank. I figured something would would get sucked up it. Like pods or algae. So I put one of those throwaway polyester bubble stones on the inlet.

Yesterday the reactor's recirc pump started cavitating and the flow went slow. I'd open up the valve more and get it back to the flow I had. Then in thirty minutes it was dribbling nothing. After about 5 bad starts I pulled that filter off. And suddenly the flow hextupled and the cavitation stopped, in a few seconds.

I was surprised that little filter clogged in a mere week. I can't even blow thru it.

So I changed to a grate type filter. The type you might see on the bottom of a powerhead.

I then set the flow way up.

It's running at 90ml/min or 5.4L/hr or 1.43gal/hr

The nitrites are running undetectable and the nitrate at the output are 80ppm. Since this a 95% reduction from the tank water I am quite happy.

Once the tank gets down to 100ppm I should be seeing only 5ppm coming out of the reactor. Could be less, I may not have my math squared up correctly.

I think there is a calculator around that calculates how long it would take to process all the tank water.. Wish I knew where to find it.

Cheers!


kcress

AC Members
Apr 9, 2005
821
0
0
At the aforementioned flow rate my output nitrate has plunged to 20ppm. 1600ppm in 20ppm out.


noskimmer

AC Members
Mar 5, 2007
316
0
16
48
Sydney
Real Name
Nick Papahatzis
I have to do an update on my water change thread, you can find it by clicking on my avatar and look for posts started by noskimmer.

One thing I did think about is, that nitrate turns into hydrogen sulfide, which in the case of live sand, slowly bubbles out. You can also see the bubbles under the sand against the glass and will often get a bunch released when a clarke decides to do that brisk swim thing without moving to disturb the sand..

Anyway.. I'm wondering, where would the gas escape in your setup?


kcress

AC Members
Apr 9, 2005
821
0
0
I believe it is supposed to actually leave as nitrogen.
You only get hydrogen sulfide if the nitrogen bacteria is starving to death. This happens in reactors like mine as you can get a whooping colony going then restrict flow and starvation starts. This shouldn't happen in a DSB.

As you know HS is very very smelly. If you had any at all you can smell it easily. Our noses are really sensitive to it in low quantities. It is also substantially more poisonous than hydrogen cyanide. They were going to use HS in gas chambers for execution but decided it would be cruel and inhuman punishment. Only relatively recently did they find out that our sense of smell is completely overwhelmed by high concentrations of HS and we actually stop smelling it in lethal quantities.

The built up gas in my column is supposed to exit out a valve at that top most port but I have actually never released any there. I suspect it is being entrained and leaves out the outlet.
