My DIY Light Hood (56K warning)

  • Get the NEW AquariaCentral iOS app --> http://itunes.apple.com/app/id1227181058 // Android version will be out soon!

hmt321

AC Members
Original poster
Nov 21, 2005
254
0
0
I built a hood for my 125 gal tank.

The sides are 1 x 6 and the top I cut out of 3/4" birch ply

I have 2 large hatches on each side

here are some picts after construction






the round holes on the ends are for ventilation, i will place 4 computer fans (2 blowing in and 2 blowing out)

this is after I have painted it (3 coats oil base gloss)
and installed lights and fans



here is the power strip on the back, i have 4 light fixtures, two 96 watt and to 55 watt.

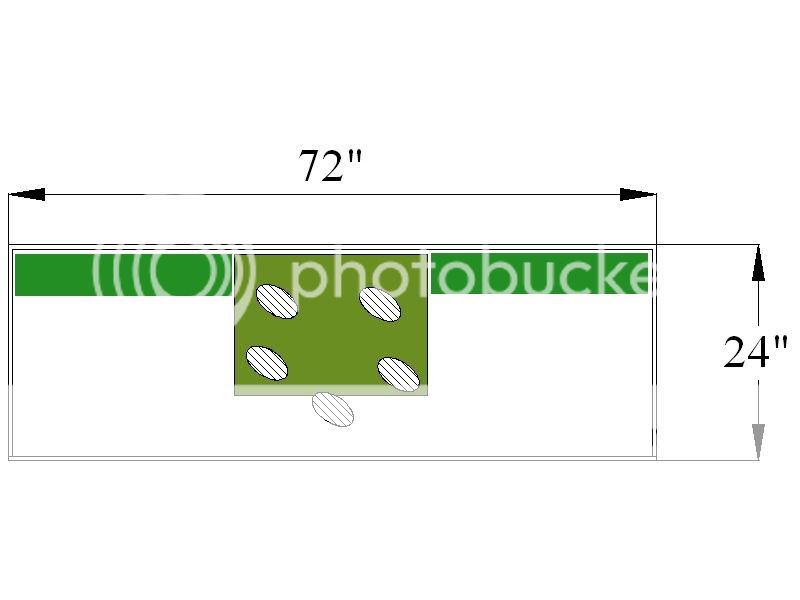

I consentrated the lights over the planted areas of the tank


the fans are two 3" computer fans and two 4" fans I bought a 12 volt dc powersource from radio shack and wired them all together. I have the 3" fans forcing air under the hood, and the 4" fans forceing air out.

a friend of mine builds computers and he suggested that the 4" fans blowing out would create low preasure under the hood and would be more benificial to air movement.

last pic


I put my ballast outside the hood to cut down on the heat

what do you think?
any suggestions for improvement

I will post after i have the tank set up and plants in next week some time


hmt321

AC Members
Original poster
Nov 21, 2005
254
0
0
I will post a pict later,

I bought the light kits from AH supply, it comes with wiring instructions, it was time consuming but not to difficult

I painted it with an exterior oil based high gloss paint.


beatle

AC Members
Dec 7, 2005
325
0
0
Alexandria, VA
www.mdbbox.com
Nice looking hood! I also do a fair amount of work with cooling computers. If you can only have one fan, it should be exhaust, but otherwise you should have an equal amount of air flowing is as is flowing out. Fans lose efficiency if there is a vacuum or pressure working against them. To make the most of your fans, make them all identical. You'll love the output of your new setup. What are you using for DC power?


hmt321

AC Members
Original poster
Nov 21, 2005
254
0
0
I used a 12 volt radio shack power supply, i cant remember the amps right now.

I will post a pict tommarrow, have not had a chance to get by the office today.


Sploke

resident boozehound
Staff member
Oct 20, 2005
6,755
26
75
37
South Windsor, CT
Real Name
Matt
Why do you have 4 ballasts? I just ordered the same thing from AH Supply, 2x55w and 2x96w. One was for a 55 and one for my 150. Each one only came with one ballast. Maybe I'm missing something with your design?


Sploke

resident boozehound
Staff member
Oct 20, 2005
6,755
26
75
37
South Windsor, CT
Real Name
Matt
Oh ok, I guess thats why a single 2x55w kit is so much cheaper than two 1x55w kits, because of the extra ballast.


hmt321

AC Members
Original poster
Nov 21, 2005
254
0
0
I used the single ballasts so i can turn off individual lights if i so choose. more expensive but more versitile

imo
