Mega-Powerful Nitrate and Phosphate Remover Replaces Skimmer, Refugium, part 1-4

  • Get the NEW AquariaCentral iOS app --> http://itunes.apple.com/app/id1227181058 // Android version will be out soon!

Morgadeth

AC Members
Sep 19, 2007
205
0
0
45
Ft Drum NY

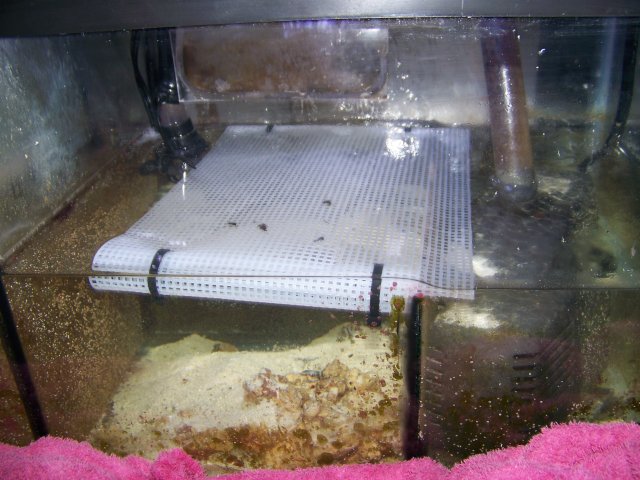

Here's my quick setup to see how it works...

I'll likely add something to aid in floatation on the left, and something to better anchor the right. It should work like this, though.

We'll see!



Morgadeth

AC Members
Sep 19, 2007
205
0
0
45
Ft Drum NY
LOL, yeah, I know it's dirty...

I forgot to do the aglae rub! Off to the living room I go!

As for water flow, I can remove my flow redirector from the skimmer output. That will definitely throw a good amount of water across the screen...

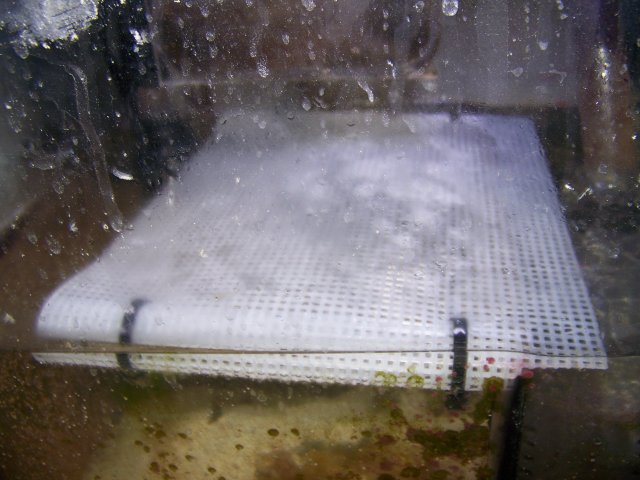

Edit: Here's a pic after cleaning the outside of the tank a bit.. Might help for a better idea on what i did


Last edited:

Morgadeth

AC Members
Sep 19, 2007
205
0
0
45
Ft Drum NY
You can't tell from the picture, but I'm moving 740GPH through this 10 gallon sump (half full). It rolls pretty good. I'll watch it, though, and keep you posted on my success (or failure)

I'll most likely keep the skimmer in action until I see some growth, and level movement


Morgadeth

AC Members
Sep 19, 2007
205
0
0
45
Ft Drum NY
Ah.. I see what he did.. used a second pump to pull from the sump itself, not the main tank flow.. I didn't think of that..
I don't have that kind of clearance under my stand, but I would do something like that if I did.. Maybe I'll build a "mini" spraybar to bring the water over tha top of my screen a little better. I have plenty of old powerheads. It shouldn't be too difficult.


kcress

AC Members
Apr 9, 2005
821
0
0
Morgadeth; You could route your return to run across and down the screen at a shallow slope. You can even put edges on the screen so it's like a sluice box and the sides contain the flow.

My understanding was that this is a highly aerobic process and so it's better to have the mat actually out of the water and the water running across it. Sort of maximized by that vertical unit pictured.

In fact the ultimate is to have the water cascade across, then stop for a second, then cascade, then stop, etc., etc.. In Dynamic Aquaria, an excellent book that really opened my eyes and switched me to an aquaculture mentality from instead trying to run a 'sterile battle ground', he has the mats lowered into the water, and then pulled, then lowered, in a mechanical method if I remember correctly. It would be much easier to somehow have the water just shift back and forth across, say, two screens alternately.

Also his method for 'seeding' was to tie the matrix in the ocean for a few weeks. Then remove the multi colonized unit install it in the system and let it select for the best species. Novel!

I'm thinking that the cyclical air exposure and the resulting agitation both work to dramatically reduce the hair algaes as I don't remember that he had any issues with it. He seemed to only harvest mat occasionally, and then often, used the harvest as fish food that went back into the tanks.



SantaMonica; Thanks for resurrecting this. I saw your original posts and thought 'spammer up to something'.

Thanks again SantaMonica for getting me interested in this again!! Great 'study' series up there. Lotta work to post. Much appreciated.


Morgadeth

AC Members
Sep 19, 2007
205
0
0
45
Ft Drum NY
I do have an articulating powerhead I no longer use in my main tank.. I could attach it to the back baffle and let it sway back and forth over the mat.. Should get a good alteranting flow going.. That's if it will articulate while out of the water. It was getting kinda sticky.. Plus, I dunno if it would overheat or not, not being fully submerged
