DIY Spraybar

  • Get the NEW AquariaCentral iOS app --> http://itunes.apple.com/app/id1227181058 // Android version will be out soon!

aardvark1

Too many tanks are almost enough...
Original poster
Sep 27, 2005
740
0
0
66
Warner Robins, Georgia, USA
I'm running a XP3 on my 55. The supplied spray bar is only 12 inches or so long, I didn't feel the water was getting circulated enough, so off to Lowes!

Some 1/2 pvc some elbows, a cap, and a barbed fitting and here tis:



Sitting on the front of the tank to check fit.



Barb end of bar (left end when installed)



Other end (right hand side). Made the bar self supporting with the elbows.



1/4 holes every inch on the rear of the bar (closest to glass).

Painted black with Krylon Fusion.

Seems to work great! (just fitted it to the tank). Disappeared in the shadow back there at the rear of the tank.



It's there-gotta look for it!



Pic with flash-shows up now.

Whatdya think?

Last edited:

Ketso

Cityfied Redneck
Jan 26, 2007
344
0
16
Orient, Ohio
Cool. I have been tossing the idea around of a DIY spraybar. Wasnt sure which way to go, but I think this will do nicely!

Hey! Dont patent it until after I get mine built, please.:)


"13"

Thirteen
Jun 17, 2007
185
0
0
Canada
Great idea man. how much does it agitate the surface of the water. It would look sweet if you painted it black.


aardvark1

Too many tanks are almost enough...
Original poster
Sep 27, 2005
740
0
0
66
Warner Robins, Georgia, USA
It is painted black (see last two pics).

Gotta a steady ripple all along the top of the tank; no whitecaps, but a gentle ripple.


"13"

Thirteen
Jun 17, 2007
185
0
0
Canada
Oh ok i see it now, thought that was the trim along the back of the tank. Has a nice clean look to it.


legendaryfrog

Tactical Refreshment Action
Nov 25, 2006
2,100
0
0
39
arlington heights - hoffman estates, IL

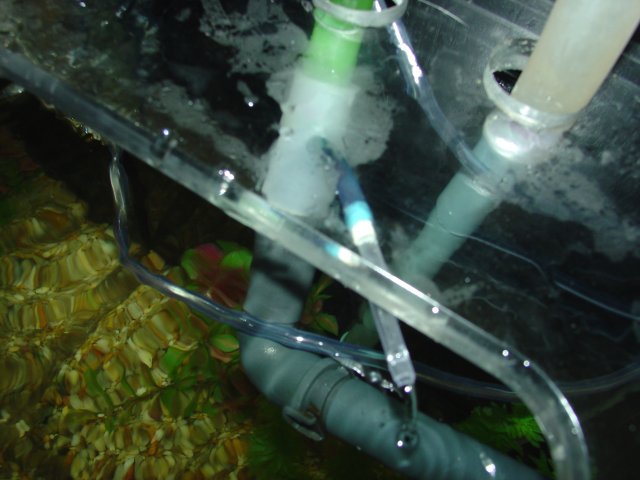

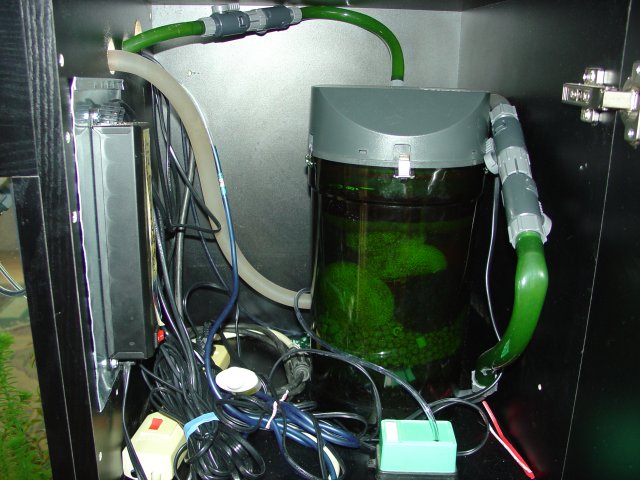

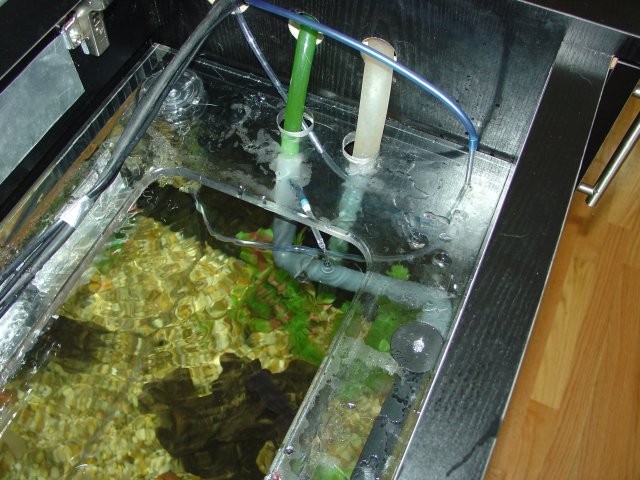

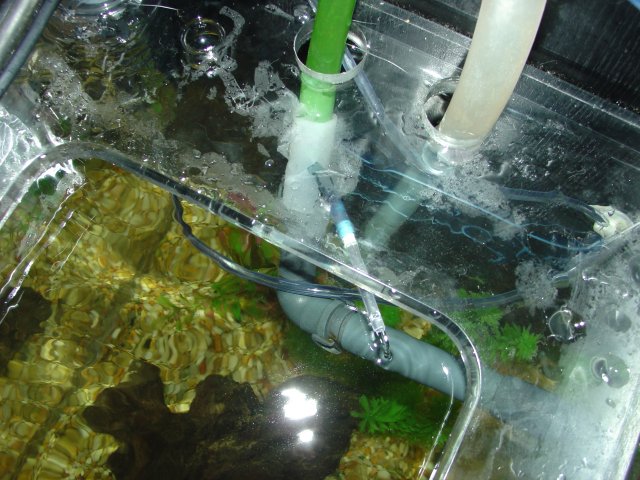

On my 150g tank, I have the regular eheim spraybar mounted horizontally; nothing special. I tried adding an air injector, as seen in these pictures. It didnt work so well with the spraybar though.

06-18-2007 006.jpg 06-18-2007 007.jpg 06-18-2007 009.jpg 06-18-2007 010.jpg


legendaryfrog

Tactical Refreshment Action
Nov 25, 2006
2,100
0
0
39
arlington heights - hoffman estates, IL
Oops. I posted in the wrong thread. I ment to post those pictures in the "eheim spraybar mods" thread.
